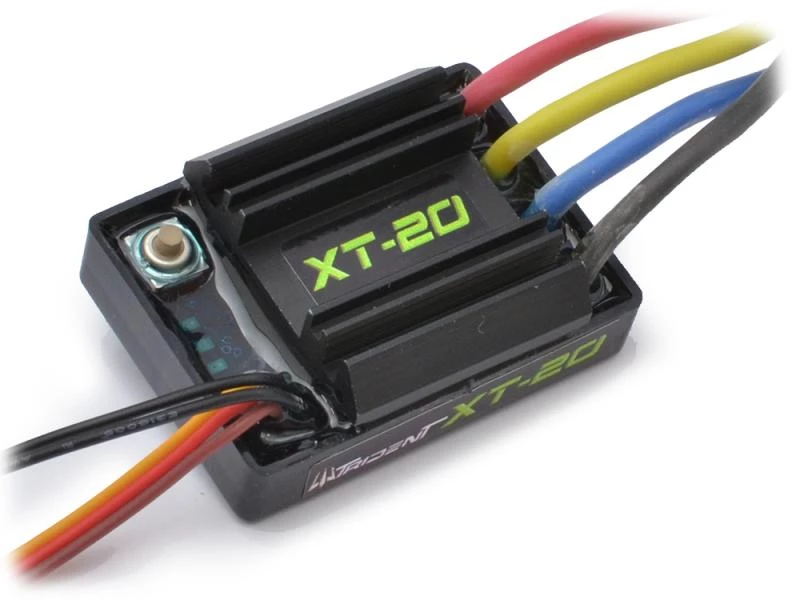

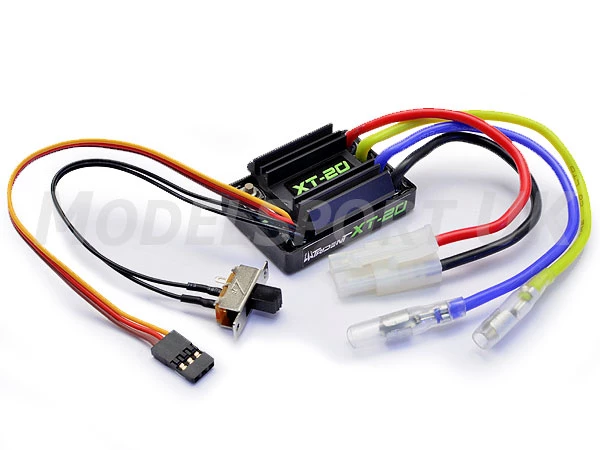

Modelsport UK Trident XT-20

The all new Trident electronic speed controller with its triple driver profiles is literally 3 ESC’s in 1.

Set the ESC to run in either, forward, brake and double tap reverse, forward and brake or forward and instant reverse.

By using the latest miniture processors we are now able to offer True Torque motor management, which until now has only been possible on large industrial sized controllers.
True Torque accurately controls motor current which virtually eliminates motor saturation and protects your motor and battery against dangerous currents, even in a full motor stall situation.
Motor life is also extended due to lower brush wear.

LED running lights set under each side of the low profile heatsink give a green glow when in operation.

A fully 100% waterproof design offers peace of mind when running your model in wet conditions.

The XT-20 is compatible with all brushed 540 series motors down to and including 20 turn.

Features:


• XT-20 = 20 turn motor limit
• Triple Profile
  • Forward, brake and double tap reverse
  • Forward and brake
  • Forward and instant reverse
• 100% Waterproof
• Green LED running lights
• True Torque motor management
• One touch set-up
• NiCad/NiMh & LiPo battery support
• 4.8-9.6V NiMh
• 7.4V 2S LiPo
• Ultra lightweight
• 5.5V/ 1.5A built in BEC
• Tamiya battery connector
• Bullet motor connectors
• Size: L42 x W30 x H16mm
• Weight: 45g

Specification

Manufacturer	Modelsport
Part Number	MSTXT20
EAN
Battery Compatibility	LiPo/NiMh
ESC Type	For Brushed Motors
Max Nimh Volt Rating	9.6v / 8 cell
Max Lipo Volt Rating	7.4v / 2s
Waterproofing	Waterproof
ESC Mode	Multi Profile
