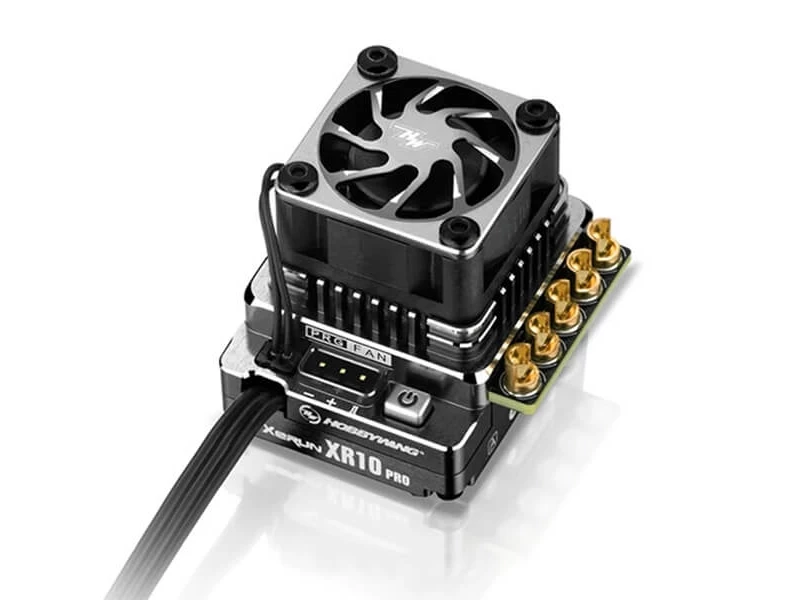

Hobbywing XERUN XR10 Pro V4 G2S Elite ESC – Silver

FEATURES

• 10 select-to-use profiles applicable to all1/10th RC car racing.
• Internal electronic key switch for long service life, high reliability; and the external switch port for connecting an external switch (Not included in the packaging box, purchase separately) is applicable to different situations.
• A separate PRG/FAN port is able to power an external fan to maximize cooling performance or connect an LCD program box or OTA Programmer to the ESC.
• Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).
• Softening function (HOBBYWING-initiated) for milder or wilder driving control and better driving efficiency.
• Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversaloccurs).
• Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real-time.
• Firmware upgrade via Hobbywing multifunction LCD program box or OTA Programmer (item sold separately).

* The external standard cap pack will still be damaged if battery reversal occurs. For full protection, recommend using HOBBYWING SMT-MLCC capacitor banks (purchase separately)

SPECIFICATIONS

• Application: 1/10th Touring car & Buggy racing, 1/10th drift car & F1
• Cont./Peak Current: 160A/1200A
• Input Voltage: 2S LiPo/4-6S Cell NiMH
• BEC Output: BEC voltage of 5-7.4V
• Wires & Connectors: Elite edition: 13AWG 200mm
• Programming device: LCD program box OTA programmer (available through Firmware update)
• Firmware: LCD Program box via USB software (PC only) OTA  (iOS / Android)
• Size: 37.5×30.9×32.5mm (w/Fan&Fan Shroud)
• Weight (w/ wires): 88g
• Motor spec recommendation*: (Touring Car) T≥4.5T, (Buggy) T≥5.5T

* Recommended T counts are only applicable with the standard 3650/540size (*3 slot-2 pole) motors when ESCs are in Blinky mode.

Specification

Manufacturer	Hobbywing
Part Number	HW30112617
EAN	5051294177553
Battery Connector Type	No Connector
Power Rating	Over 150 Amps
ESC Mode	Multi Profile
Battery Compatibility	LiPo/NiMh
ESC Type	For Brushless Motors
Motor Connector Type	No Connector
Max Nimh Volt Rating	7.2v / 6 cell
Motor Compatibility Type	Sensored
Max Lipo Volt Rating	7.4v / 2s
