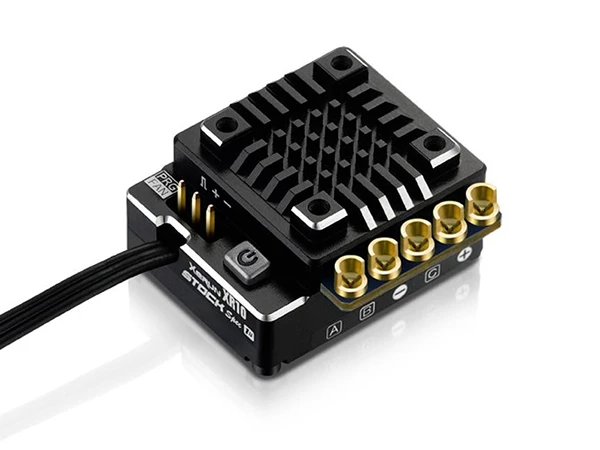

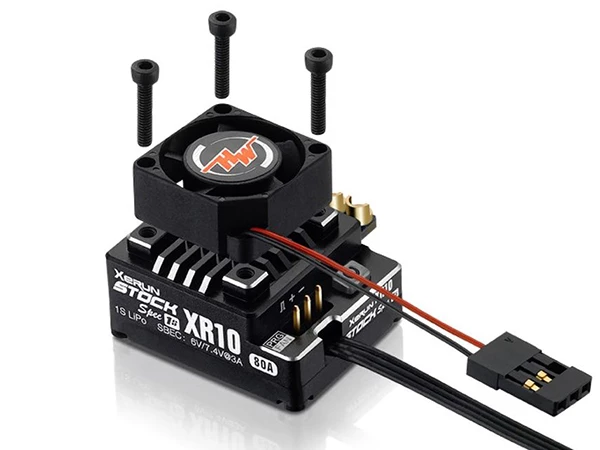

Hobbywing XeRun XR10 Pro Stock Spec 1S ESC

Small and Lightweight

The small size (20% smaller than the standard version XeRun XR10 Pro 1S)
saves space and the light weight (only 23.5g w/o wires) provides more
weight margin when adjusting the balance of the chassis.

Spcial Design for 1s Stock Class Racing

The reliable hardware combined with powerful software (contains 5 common select-to-use profiles)
provides an ideal power solution to the 1/10 ^th , 1/12 ^th 1S Stock class racing.

Super Internal BEC

The built-in boost BEC with a maximum output of 3A and voltage
adjustable between 6V and 7.4V allows users to use various,
servos and receivers (without connecting any extra battery)

Adjustable Throttle and Brake PWM Frequencies

The independent and adjustable throttle & brake PWM frequencies guarantee users the
precise and accurate throttle and brake control.

Programming/ Upgrading/ Data Reading Wirelessly

With Hobbywing’s “WiFi Express” module and iPhone or an Android phone (with the HOBBYWING
WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check
relevant data of the ESC without leaving the control stand.

Built-in Electronic Switch

The internal electronic switch with a lifespan of over 50000 on/off cycles
completely solves the problems like stuck reed, rust contact points, and
automatic shutdown conventional mechanical switches often have.

Data-Logging Capability

This ESC features the data-logging function which will record the
maximum ESC& motor temperatures, the maximum motor RPM,
and etc. in real time and allows users to check those data via a LCD
program box or WiFi module after each use.

Type:

• Scale: 1/12th
• Brushed/ Brushless: Brushless
• Sensored/ Sensorless: Sensored
• Waterproof: No

Specification:

• Cont./Peak Current: 80A/380A
• Input Voltage: 1S LiPo/ 3-4 Cell NiMH
• BEC Output: Switch Mode: 6V/7.4V, 3A

Wires & Connectors:

• Input Wire: Black-14AWG-200mm x2
• Output Wires: Black-14AWG-200mm x3
• Input Connectors: No
• Output Connectors: NO

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via:

• Set Button on ESC: Not Supported
• LED Program Box: Not Supported
• LCD Program Box: Supported
• WiFi Module: Supported
• Program Port: Seperate Program Port

Firmware

• Supported

Size & Weight:

• Size: 31.6×25.8×16.2mm
• Weight: 23.5g (w/o Wires)

Applications

• Motors: SL BL Motors/ SD BL Motors
• Vehicles: Stock Class of 1/12th Touring Car, Buggy Racing
• KV Rating/ T Count: >10.5, 3650 Size Motor

Specification

Manufacturer	Hobbywing
Part Number	HW30112751
EAN	5051294121112
Waterproofing	No
Power Rating	Upto 80 Amps
Battery Compatibility	LiPo/NiMh
ESC Type	For Brushless Motors
Motor Connector Type	No Connector
Max Nimh Volt Rating	4.8v / 4 cell
Motor Compatibility Type	Sensored / Sensorless
Max Lipo Volt Rating	3.7v / 1s
Battery Connector Type	No Connector
