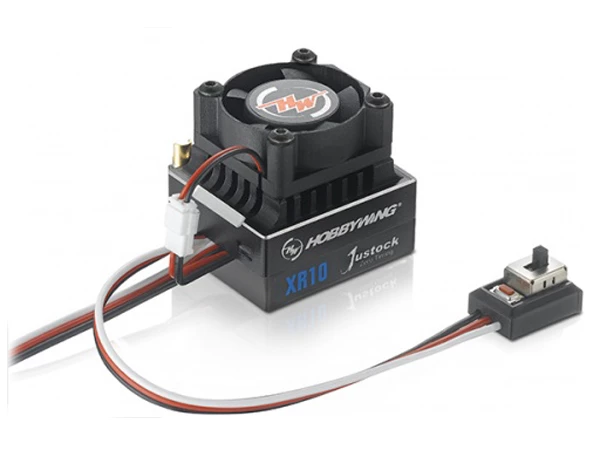

XERUN – XR10-Juststock ESC – Black
Specification:
Cont./Peak Current – 60A/380A
Motor Limit – Sensored / Sensorless Brushless Motor
Applications – 1/10, 1/12 on-road & off-road CLUB competition and normal training
(Motor) KV Limit – Brushless Motor Limit 2S LiPo/4-6S NiMH: 8.5T (1/10 on-road), 11.5T (1/10 off-road)
Brushless Motor Limit 3S LiPo/8-9S NiMH:13.5T (1/10 on-road), 17.5T (1/10 off-road) .
LiPo/NiMH Cells – 2-3S LiPo/4-9S NiMH
BEC Output – 6V, 2A (Line-mode BEC)
Fan (Included) – Powered by the stable BEC output voltage of 6V
Connectors – Input End: No, Output End: No.
Size/Weight (mm/g) – 33.5mm(L) x 28.5mm(W) x 30.5mm(H) / 59.8g
ESC Programming – Via the Rx Cable (or Throttle Control Cable)
Specification
| Manufacturer | Hobbywing |
|---|---|
| Part Number | HW30112000 |
| EAN | 5051294107970 |
| ESC Mode | Forward and Brake |
| Battery Compatibility | LiPo/NiMh |
| ESC Type | For Brushless Motors |
| Max Nimh Volt Rating | 10.8v / 9 cell |
| Power Rating | Upto 60 Amps |
| Motor Compatibility Type | Sensored / Sensorless |
| Max Lipo Volt Rating | 11.1v / 3s |
