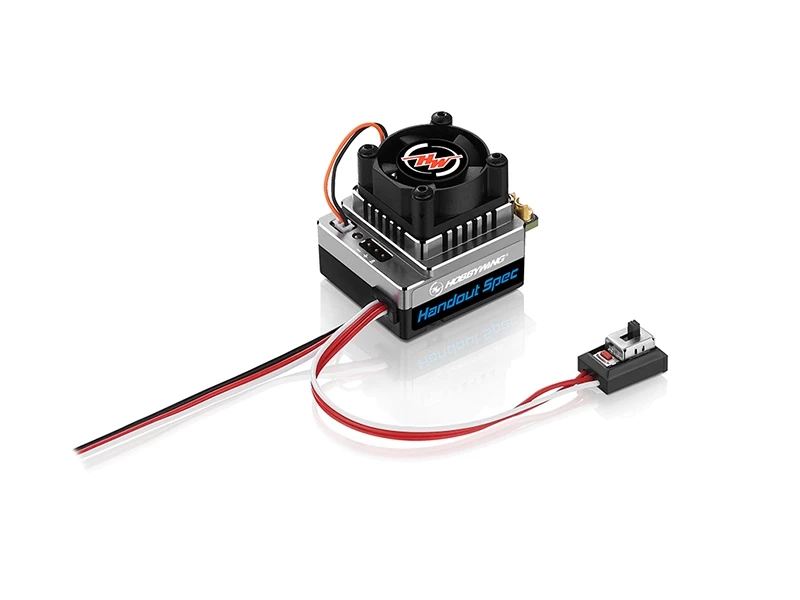

Hobbywing XERUN XR10 JUSTOCK G3 – Handout Spec ESC

Built to race fair
The XR10 Justock G3-Handout ESC, together with Justock-Handout motor are designed for fair and competitive racing. The reliable characteristics of the HOBBYWING electronics ensures safe operation and consistent power output over a long period of time.

RPM speed limit function
Supports 6-speed RPM speed limit value selection and is able to match different motor speed to meet the speed limit requirements of various levels of competition and different vehicle on the market; the RPM speed limit value gear can be identified through the ESC indicator; accurate speed limit Algorithms ensures smooth throttle control.

Zero timing competition design
The internal timing of the ESC is fixed at 0 degrees and cannot be adjusted. It is specifically built for zero timing races around the world.

Support bi-directional motor movement
The ESC supports both CCW (counterclockwise) and CW (clockwise) motor rotational directions for different usage on the market.

Built-in polarity protection
One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, incidentally reversing the terminals. The ESC is integrated using MOSFET. If the battery terminals are connected in reverse, the MOSFET will be reverse-biased and will not allow current to flow through the system.

Built-in capacitor module
The built-in capacitor module eliminates the need for external capacitors and unwanted space.

Built-in BEC supporting high-voltage servo
The ESC has a built-in BEC which can support a maximum output current of up to 8A and the output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

User-friendly and convenient for set-up
The ease of having a dedicated programming port eliminates the trouble of plugging and unplugging the cable to the receiver.
In addition, the interface can power additional fans to further dissipate heat. The user-friendly interface allows for easy and convenient setup by simply connecting the 3in1 LCD programming box or OTA Bluetooth module to the dedicated programming port.

Specification

• Scale – 1/10th
• Brushed/Brushless – BL
• Sensored/Sensorless – SD
• Waterproof – No
• Cont./Peak Current – 60A/380A
• Input Voltage – 2S LiPo
• BEC Output – 6V/7.4V @4A,8A Peak
• Input Wires – Black-14AWG-200mm*2
• Output Wires – Black-14AWG-200mm*3
• Input Connectors – No
• Output Connectors – No
• Size – 40.9×33.9×32.1mm
• Weight – 75.4g(w/Wires)
• Applications – SL BL Motors / SD BL Motors
• Vehicles – 1/10th1/12th On-road and Off-road club competition and normal training
• KV Rating/T Count – ≥10.5T 3650 Motor

Fan

• Size – 25x25x10mm
• Output Wires – 5-7.4V
• Input Connectors
• Powered by BEC

ESC Programing via

• SET Button on ESC – Supported
• LED Program Box – Supported
• LCD Program Box – Supported
• WiFi Module – Supported
• OTA – Supported
• Programming Port – Separate
• Firmware Upgrade – Supported

Specification

Manufacturer	Hobbywing
Part Number	HW30112004
EAN	5051294181017
Battery Connector Type	No Connector
Battery Compatibility	LiPo
ESC Type	For Brushless Motors
Motor Connector Type	No Connector
Motor Compatibility Type	Sensored
Max Lipo Volt Rating	7.4v / 2s
