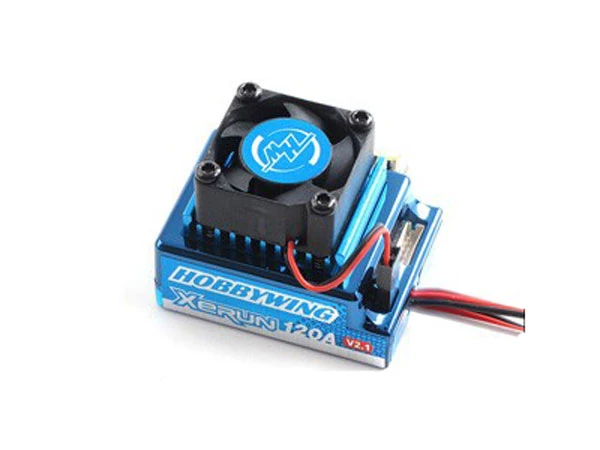

Hobbywing XERUN – V2.1 – BL ESC-120A – Blue

Specification:

Output: Continuous 120A, Burst 760A.
Input: 4-9 cells NiMH/NiCd or 2-3S LiPo.
BEC: 5.75V@3A (linear mode)
Resistance: 0.0003 Ohm.
Motor Supported: Sensored and Sensorless Brushless Motor.
Size: 43mm(L) 36mm(W) 33mm(H).
Weight: 105g (Without wires).

Suitable  Models:

1/10,1/12 all competitions
1/10,1/8 rock crawler

Motor Limit:

With 2 Lipo or 4-6 NiMH
1/10 on-road: >=3.5T
1/10 off-road: >=5.5T

With 3 Lipo or 7-9 NiMH
1/10 on-road: >=5.5T
1/10 off-road: >=8.5T

Note:

For 4-6 cells NiMH/NiCd or 2S LiPo, the standard cooling fan needn’t be changed.
For 7-9 cells NiMH/NiCd or 3S LiPo, the standard cooling fan need be changed to 12V high voltage fan.

Features:

Compatible with most of sensorless and sensored brushless motors such as LRP, Orion, Speed Passion, HPI, Dynamite, etc.
Large current endurance.
Most effective cooling structure.
Excellent start-up, acceleration and linearity features, best control feeling.
Plenty of programmable items, suitable for various of chassis’s, tires and racing tracks.
Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
Internal timing can be changed easily to make the ESC suitable for various of motors.
Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software.
ESC firmware can be updated through the USB adapter in the LCD Program Box .
Plenty of firmware available for all kinds of competitions.
Standard firmware for MODIFY competition.
Supercharged firmware(with turbo timing) for SUPER STOCK competition.
Zero timing firmware for ROAR SPORTMAN race and other fair races.
Also suitable for rock crawler pro race when using Crawler working mode.

N.B. All wires require installation/soldering

Specification

Manufacturer	Hobbywing
Part Number	HW81020170
EAN	5051294081683
Battery Compatibility	LiPo/NiMh
ESC Type	For Brushless Motors
Max Nimh Volt Rating	10.8v / 9 cell
Motor Compatibility Type	Sensored / Sensorless
Max Lipo Volt Rating	11.1v / 3s
Power Rating	Upto 120 Amps
