Hobbywing XERUN V10 21.5T Motor – Black – G4

Introducing the Hobbywing XeRun V10 G4 Stock Motor..

Built for the ultra competitive Stock racing, the V10 G4 has been tested and developed together with World and European champions.

This new generation has been greatly optimised with the stator being redesigned for higher efficiency and is equipped with ultra high grade custom magnetic ring rotor for maximum torque and increasing the output power by 5%.

The internal resistance has also been reduced by about 4% resulting in a more efficient and cooler temperature of the motor.

The motor adopts a full exposed stator core and is directly exposed to the air for excellent heat dissipation.

The outer diameter is maximised to increase the stator heat dissipation area by 25.6% compared to the V10 G3R motor.

The motor is equipped with a high-precision endbell plate that uses high quality structural components to greatly improve the consistency and structural stability of the power output at all times.

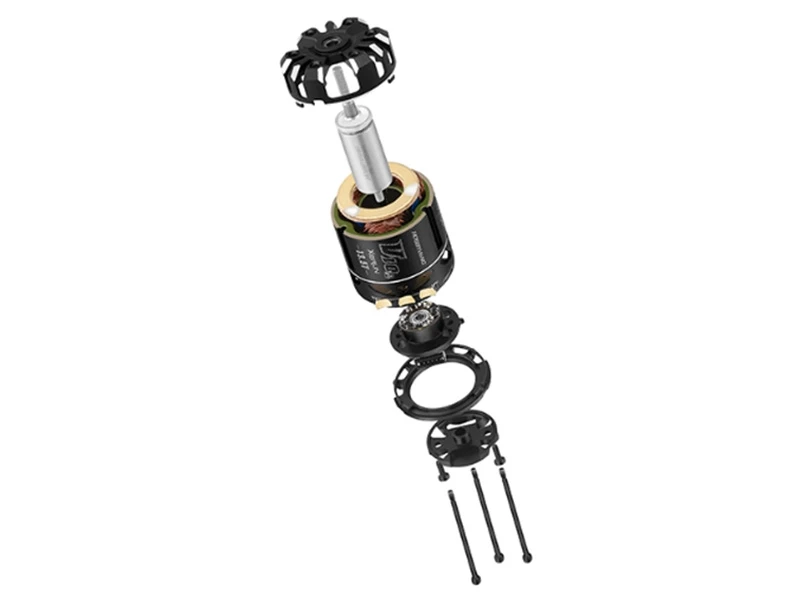

The V10 G4 adpots a modular structural design which is convenient for maintenance which prolongs the service life of the motor.

Specifications

Type

• Scale – 1/10th
• Brushed/Brushless – BL
• Sensored/Sensorless – SD
• Pole Count – 2

Relevant Parameters

• KV Rating – 2500
• LiPo Cells – 2-3S
• No-load Current(A) – 3.0

Size & Weight

• O.D.(mm) – 35.8
• Length (mm) – 51.4
• Shaft Diameter (mm) – 3.175
• Weight (g) – 148
• Front Bearing – D9*D4*t4
• Rear Bearing – D8*D3*t4

Timing

• 30-60 Degrees(Adjustable)

Applications – 1/10th STOCK Class Racing

Specification

Manufacturer	Hobbywing
Part Number	HW30401142
EAN	5051294181048
Motor Size	540
Motor Class	Stock
Motor Brush Type	Brushless
Motor Turns (Brushless)	21.5T
Motor Connector Type	No Connector
Bore	3.2mm
Pole	2 Pole
Brushless Motor Type	Sensored
