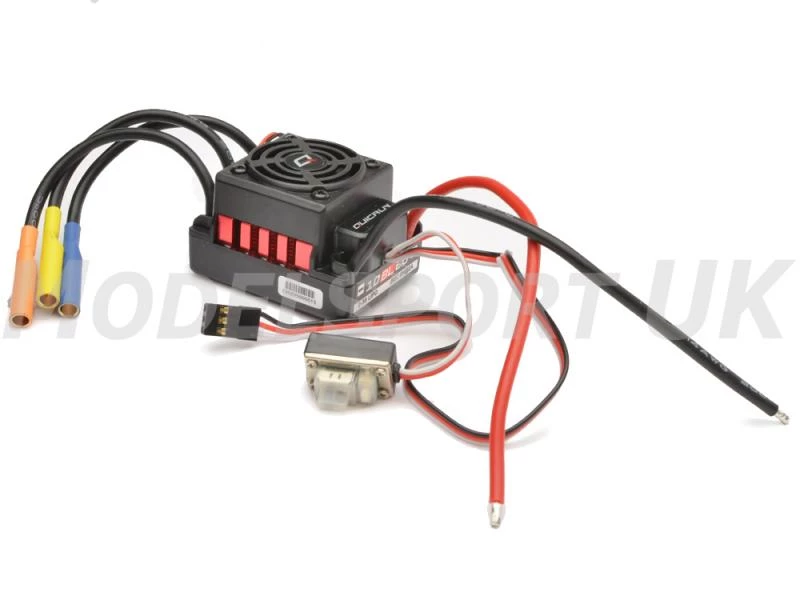

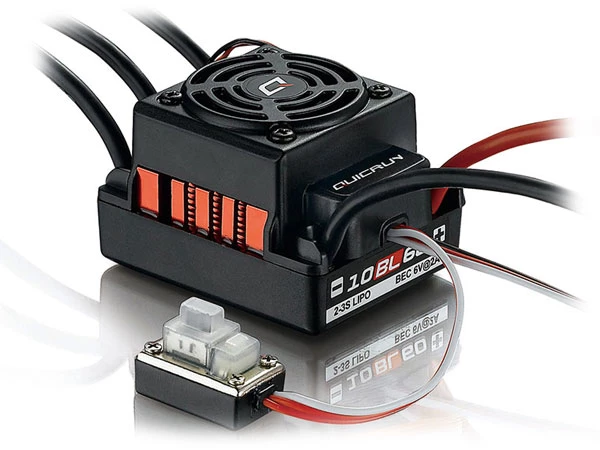

Hobbywing QUICRUN WP-10BL60 BL ESC

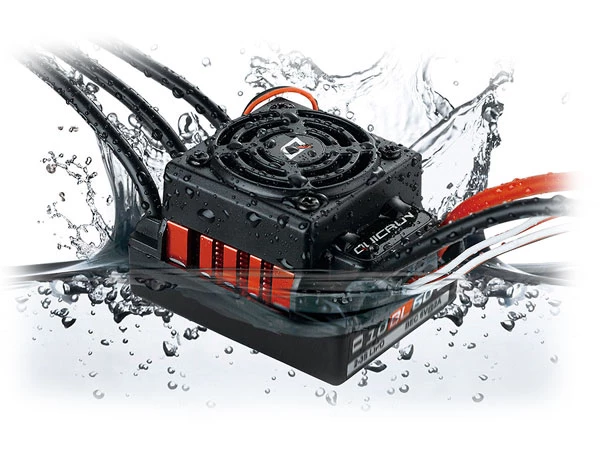

Water-proof and dust-proof design, the QuicRun-WP-10BL60 speedo is fit for all weather races.

The speedo has the following outstanding features:

• External programming port, easy to connect to the Program Card when setting the ESC.
• Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
• 9 steps of acceleration (punch) adjustment from soft to very aggressive to fit different kinds of models, tyres and tracks.
• Multiple protections lsuch as low voltage cut-off protection, over-heat protection, throttle signal loss protection and motor lock-up protection to extend the service life.
• One-button (the SET button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
• Compatible with the optional device – the portable Digital LED Program Card, especially convenient for outdoor use.

Specification:

• Current – 60A/360A
• Input – 4-9 Cells NiMH, or 2-3S Lipo
• BEC Output – 6V/2A (Linear Mode)
• Motor Supported – Sensorless Brushless Motor (compatible with sensored motor but not in sensored operating mode)
• Cooling Fan – Gets working voltage from battery directly without regulating, the stock fan can work with 2S and 3S Lipo
• Weight – 90g
• Size – 48.5(L)X38(W)X32(H)mm
• Motor Limit – For 2S Lipo or 6 cells NiMH
• On-road: 3656-size or smaller motor with the KV<6000
• Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000
• For 3S Lipo or 9 cells NiMH:
• On-road: 3656-size or smaller motor with the KV<4000
• Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<3000
• Car Applicable – 1:10 On-road/Off-road/Buggy/Monster
• Supplied with 4mm Bullet connectors installed
• Suitable power connector required

Specification

Manufacturer	Hobbywing
Part Number	HW30105060004
EAN	5051294085469
Power Rating	Upto 60 Amps
ESC Mode	Forward/Reverse
Battery Compatibility	LiPo/NiMh
ESC Type	For Brushless Motors
Max Nimh Volt Rating	10.8v / 9 cell
Motor Compatibility Type	Sensorless
Max Lipo Volt Rating	11.1v / 3s
Waterproofing	Waterproof
