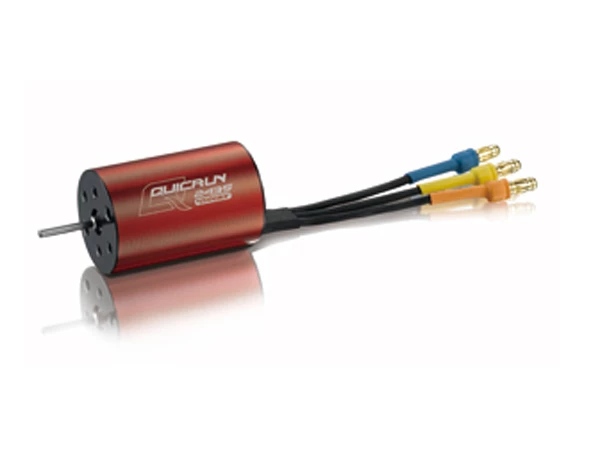

Hobbywing QUICRUN – 2435-4500KV BL Motor – 1/18-1/16

Great Construction
The use of a heat-resistant magnet attached steel case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability.

Cost-effective
The QUICRUN-2435 is an inexpensive motor but applicable to 1/16th & 1/18th scale vehicles.

High Efficiency
The output performance of this motor has an efficiency of up to 80%. In the same load condition, QUICRUN 2435 has the higher efficiency but lower temperature than other 2435 motors.

Dustproof Design
The dustproof design implemented at the load end of the motor makes this QUICRUN 2435 motor applicable for monster trucks, buggies.

Plug and Play
Pre-soldered with high-quality gold connectors on motor leads, the QUICRUN 2435 motor is a plug and play.

Wide Application
The QUICRUN 2435 is applicable to various 1/16th & 1/18th scale vehicles, especially buggies & monster trucks.

Scale – 1/16th?1/18th
Brushed/Brushless – BL
Sensored/Sensorless – SL
Pole Count – 2

Relevant Parameters
KV Rating – 4500
LiPo Cells – 2-3S
No-load Current(A) – 1.5
Max. Power Output(W) – 150
Current at the Point of Max. Power Output(A) – 33

Size & Weight

O.D.(mm) – 24.0
Length (mm) – 36.5
Shaft Diameter (mm) – 2.3
Weight (g) – 73

Other Parameters
Timing – 0
Applications – 1/18th, 1/16th Touring Cars/Buggies/Trucks/Monster Trucks

Specification

Manufacturer	Hobbywing
Part Number	HW30404010001
EAN	5051294085513
Motor Class	Micro & Mini
Motor Size	380
Motor Brush Type	Brushless
Motor Connector Type	3.5mm Bullets
Bore	2.3mm
KV Rating (Brushless)	4001 – 5000kv
Pole	2 Pole
Brushless Motor Type	Sensorless
