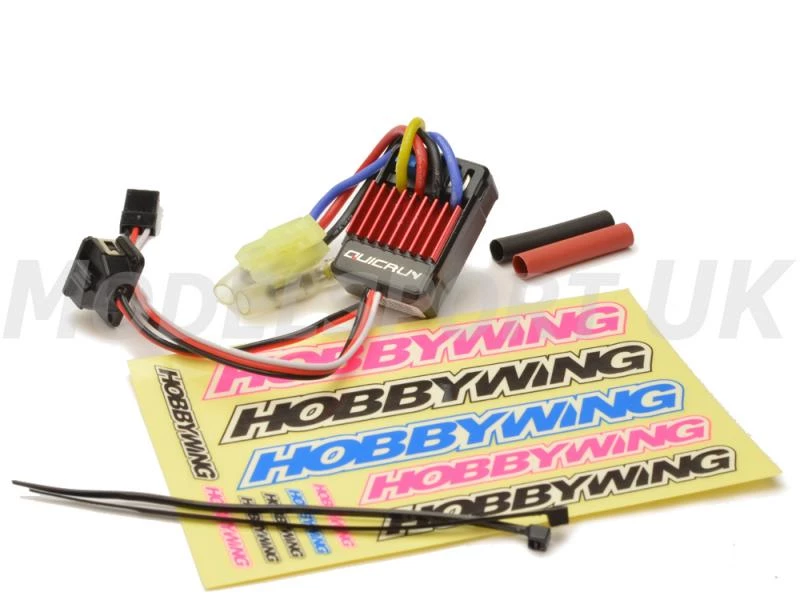

Hobbywing QUICRUN 1625 Brushed ESC

This speedo is suitable for all-weather condition races because of its water-proof and dust-proof design. It owns these outstanding features. Small size with built-in capacitor module. The Forward/Reverse/Brake running mode fits for sport races of various vehicles. Great current endurance capability. Automatic throttle range calibration, easy to use. Easy to set the ESC parameters with jumpers. Multiple protections like Low voltage cut-off protection, Over-heat protection and Throttle signal loss protection to extend the service life.

• Fwd. Cont. / Peak Current – 25A /100A
• Rev. Cont. / Peak Current – 25A /100A
• Resistance – Fwd 0.003, Rev 0.003
• Input – 2-3S Lipo or 5-9 NiMH
• BEC Output – 1A/5V (Linear Mode)
• Motor Limit – 2S Lipo or 6 NiMH
• 280 370 or 380 Size Motor RPM<30000 @7.2V
• 3S Lipo or 9 NiMH
• 280 370 or 380 Size Motor RPM<20000 @7.2V

PWM Frequency – 1KHz
Cooling Fan – Without cooling fan
Weight – 23.5g
Size – 34(L)X24(W)X14(H)mm
Running Modes – Forward/Reverse/Brake
Car Applicable – 1/18 & 1/16
Touring Car, Buggy, Monster, Truggy

Specification

Manufacturer	Hobbywing
Part Number	HW30105025001
EAN	5051294085490
ESC Mode	Forward/Reverse
Battery Compatibility	LiPo/NiMh
ESC Type	For Brushed Motors
Max Nimh Volt Rating	10.8v / 9 cell
Waterproofing	Waterproof
Max Lipo Volt Rating	11.1v / 3s
Battery Connector Type	Mini Tamiya
