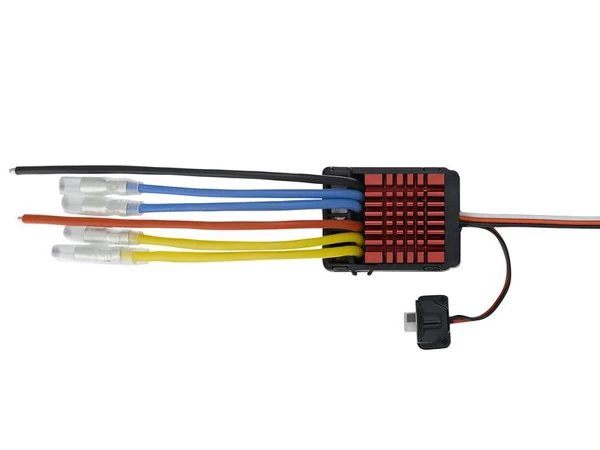

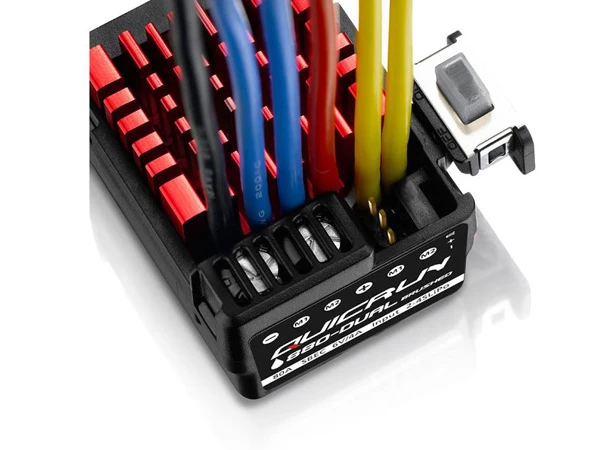

Hobbywing Quicrun 0880 Dual Motor Brushed ESC (80A) Waterproof

Specifications

• Cont./Peak Current: 80A/400A
• Input Voltage: 2-4S LiPo/5-12 Cell NiMH
• BEC: Output6V@4A (Switch-mode)

Wires & Connectors

• Input Wires: Red-16AWG-150mmx1 / Black-16AWG-150mmx1
• Output Wires: Blue-16AWG-100mmx2 / Yellow-16AWG-100mmx2
• Input Connectors: Not supplied
• Output Connectors: 4.0 Bullet Connectors (Female)
• Separate Programming/Fan Port

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via LED Program Box only

Size & Weight

• Size: 45.9X34.7X26.5mm
• Weight: 75g

Applications

• Motors: Brushed Motor(540/550/775 size motors)
• Vehicles: Various 1/10th & 1/8th Vehicles

KV Rating/T Count for single motor use, double when using two motors.

Brushed Motor Limit with 2S LiPo/6S NiMH: =12T or RPM<[email protected] (540/550 size motors)
Brushed Motor Limit with 3S LiPo/9S NiMH: =18T or RPM<[email protected] (540/550 size motors)
Brushed Motor Limit with 4S LiPo/12S NiMH: =24T or RPM<[email protected] (540/550 size motors)



When Driving 2 Motors Simultaneously the Turns/T Count of the Motor Must Be Increased Accordingly.

Specification

Manufacturer	Hobbywing
Part Number	HW30120301
EAN	5051294144074
Waterproofing	Waterproof
Power Rating	Upto 80 Amps
ESC Mode	Forward/Reverse
Battery Compatibility	LiPo/NiMh
ESC Type	For Brushed Motors
Motor Connector Type	4mm Bullet Classic Crimp Terminal
Max Nimh Volt Rating	14.4v / 12 cell
Max Lipo Volt Rating	14.8v / 4s
Battery Connector Type	No Connector
