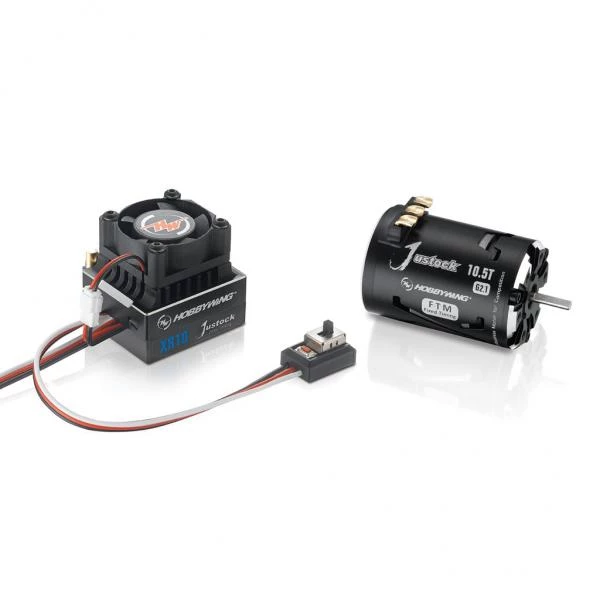

Hobbywing Juststock Combo XR10 JS4 – Black – G2.1 13.5T

Hobbywing XR10 Justock speed control and Justock 3650SD brushless motor combo pack.

Specification

Cont./Peak Current – 60A/380A

Motor Limit – Sensored / Sensorless Brushless Motor

Applications – 1/10, 1/12 on-road & off-road CLUB competition and normal training

(Motor) KV Limit – Brushless Motor Limit 2S LiPo/4-6S NiMH: =8.5T (1/10 on-road), =11.5T (1/10 off-road)
Brushless Motor Limit 3S LiPo/8-9S NiMH:=13.5T (1/10 on-road), =17.5T (1/10 off-road) .

LiPo/NiMH Cells – 2-3S LiPo/4-9S NiMH

BEC Output – 6V, 2A (Line-mode BEC)

Fan (Included) – Powered by the stable BEC output voltage of 6V

Connectors – Input End: No, Output End: No.

Size/Weight (mm/g) – 33.5mm(L) x 28.5mm(W) x 30.5mm(H) / 59.8g

ESC Programming – Via the Rx Cable (or Throttle Control Cable)

BRCA ‘Blinky approved’

– The main feature of these motors is the fixed timing and easy to use solder joints, making it an excellent motor for controlled classes.

Motor Features

– The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
– The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
– The silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor.
– The detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency.
– This motor is perfectly matched with the XR10-Justock ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands.
– This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice.
– The motor design is in compliance with IFMAR, and ROAR specifications.

Specification

Manufacturer	Hobbywing
Part Number	HW38020240
EAN	5051294137618
Motor Size	540
Max Lipo Volt Rating	11.1v / 3s
Motor Class	Stock
Battery Connector Type	No Connector
Battery Compatibility	LiPo/NiMh
Motor Connector Type	No Connector
Bore	2.3mm
Brushless Motor Type	Sensored Or Sensorless
