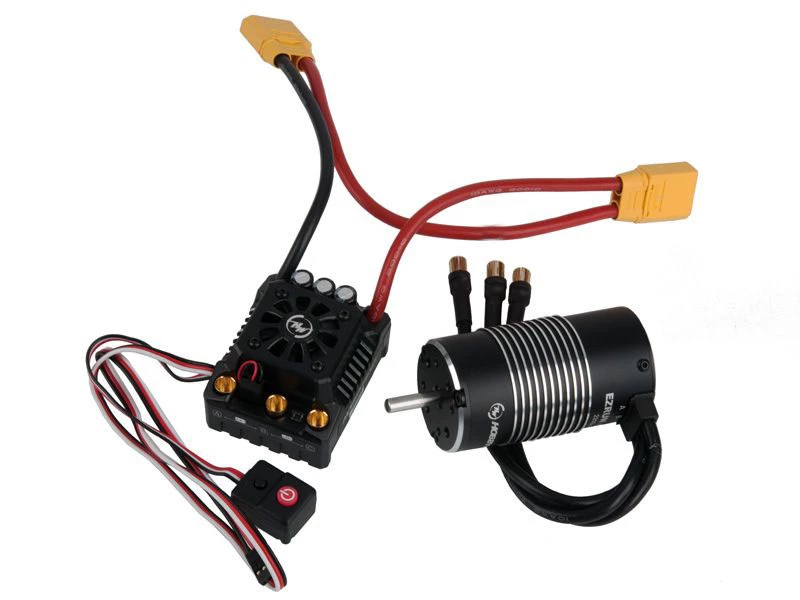

Hobbywing EZRUN MAX8 With 2200kv Motor Combo

The Combo Includes:

• ESC: EZRUN MAX8 V3, 1pcs
• Motor: EZRUN-4274 brushless motor, 1pcs
• LED Program Box

ESC Specifications:

• Twin XT-90 Connectors
• Cont./Peak Current: 150A/950A
• Motor Type: Sensored/Sensorless brushless motor
• Applications: 1/8th Touring Car, Buggy, Truggy and Monster Truck
• LiPo/NiMH Cells: 3-6S LiPo/9-18S NiMH
• Motor Limit 4S LiPo/12 cells: Kv=3000 (4274 size motor)
• Motor Limit 6S LiPo/18 cells NiMH: Kv=2400 (4274 size motor)
• BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
• Dimensions: 59.8x48x36.8
• Weight: 173.5g
• Programming Port: FAN/PRG Port

Motor Specifications:

• KV: 2200Kv
• Motor Lenght: 74mm
• Motor Diameter: 42mm
• Voltage: 2-6s (7.4 – 22.2v)
• Weight: 418g
• Applicable: 1/8th
• Pre-Soldered 6.5mm Motor Bullets

Features

3.1 ESC is compatible with sensorless brushless motors and sensor ed brushless motors (only in sensorless mode).
3.2 Fully waterproof design for all weather conditions.
3.3 Super internal switch-mode BEC with switchable voltage of 6V/7.4V and a co nt ./peak current of 6A/15A for easily driving big tor que servos and high voltage servos.
3.4 Highly reliable electronic switch avoids troubles which may happen to traditional mechanical switch due to dirt, water, dash and etc.
3.5 Separate programming port to easily connect the LED pr ogram card or the LCD pr ogram box to the ESC.
3.6 Proportional brake with 9 levels of maximum brake for ce and 9 levels of drag brake for ce.
3.7 5 levels of acceleration/punch fr om soft to aggressive for different vehicles, tires and tracks.
3.8 Capacitor Protection:Innovative Capacitor Protection effectively protects capacitors from exploding and causing irreversible damage to the ESC because of overload.
3.9 Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail safe (thr ottle signal loss protection).
3.10 Advanced programming via portable LED pr ogram card or multifunction LCD pr ogram box.
3.11 Firmware upgrade via HOBBYWING multifunction LCD pr ogram box (item sold separately).

Specification

Manufacturer	Hobbywing
Part Number	HW38010400
EAN	5051294108687
Power Rating	Over 150 Amps
Battery Connector Type	XT-90
Max Lipo Volt Rating	22.2v / 6s
KV Rating (Brushless)	2000 – 3000kv
Waterproofing	Waterproof
Battery Compatibility	LiPo/NiMh
Motor Connector Type	6.5mm Bullets
Bore	5mm
Brushless Motor Type	Sensored Or Sensorless
