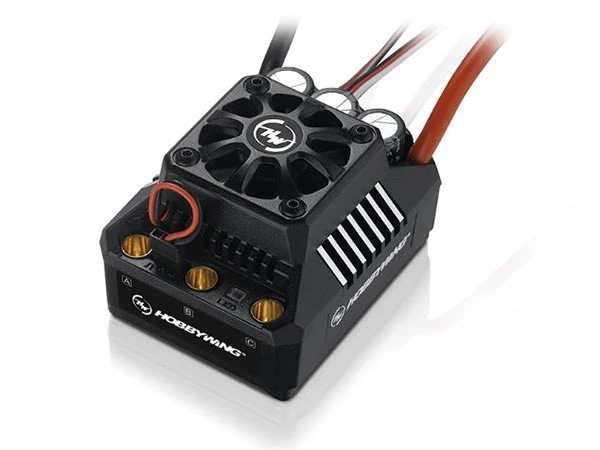

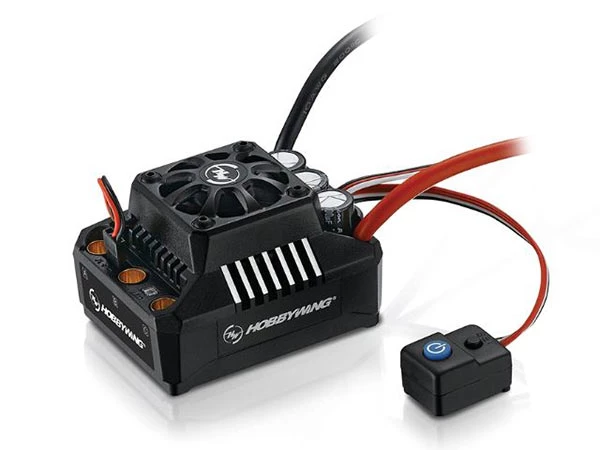

Hobbywing EZRUN MAX6 V3 – 160A 1/6th ESC

High Reliability & Durability

Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX5/MAX6 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical
abuse, overuse or even human error.

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the MAX5/MAX6 to be used in all weatherconditions without any issue of damage caused to the ESC from water or dust.

MAX6 Applications:

This ESC is applicable to various 1/6th & 1/7th scale vehicles like the Traxxas XO-1 and X-Maxx, and also suitable to various 1/8th scale heavy vehicles like the CEN GST-E. It’s the ideal option for high-end aggressively powered builds.

Specifications:

• Continuous Current: 160A
• Peak Current: 1,050A
• Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
• Applications: 1/6th Touring Car, Buggy, Truggy and Truck
• Motor Limit: With 6S LiPo/18S NiMH: KV <1500 (5892 size motor); With 8S LiPo/24S NiMH: KV <1200 (5892 size motor)
• LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
• BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
• Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
• Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
• Size (LxWxH): 70x56x46.5mm
• Weight: 240g
• Programming Port: FAN /PRG Port

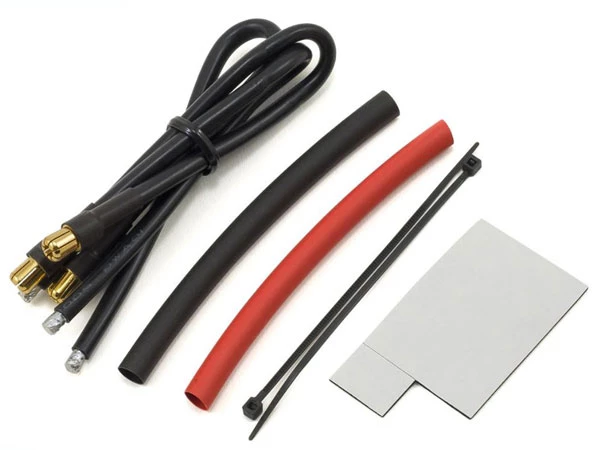

Includes:

• Ezrun MAX6 ESC
• 10 AWG, 200C Black wires for a brushless motor
• Double side tape
• Heat shrink tube
• Manual
• Hobbywing decal

*Please note if we are soldering your wires and connectors full lengths of wire will be used and will approx. measure 200mm. If you require a specific length please state in the order notes.

Specification

Manufacturer	Hobbywing
Part Number	HW3010500
EAN	5051294107413
Waterproofing	Waterproof
Power Rating	Over 150 Amps
ESC Mode	Forward/Reverse
Battery Compatibility	LiPo/NiMh
ESC Type	For Brushless Motors
Motor Connector Type	6.5mm Bullets
Battery Connector Type	No Connector
Motor Compatibility Type	Sensorless
Max Lipo Volt Rating	29.6v / 8s
