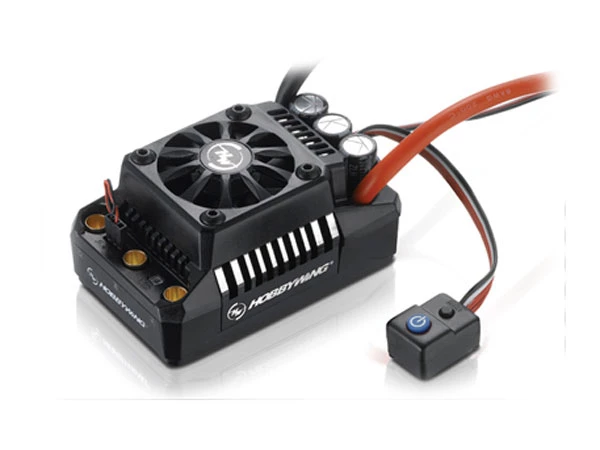

Hobbywing EZRUN MAX5 V3 – 200A 1/5th ESC

High Reliability & Durability

Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX5/MAX6 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical
abuse, overuse or even human error.

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the MAX5/MAX6 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

MAX5 Applications:

The EZRUN MAX 5 provides the ultimate power upgrade solution for many popular 1/5th scale vehicles like HPI Baja buggy, Losi 5IVE-T Nitro-to-Electric truck, and Desert Buggy XL Nitro-to-Electric buggy. It’s also suitable for various other brand of 1/5th scale on-roadcars, truggies, SCTs and buggies.

Specifications:

Cont./Peak Current; 200A/1300A
Motor Limit; With 8S LiPo/24S NiMH: KV = 1000 (58110 size motor)
LiPo/NiMH Cells; 9-24S NiMH, 3-8S LiPo
BEC Output; 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
Size/Weight; 93.35 (L)x 58.12 (W)x 47.81 (H)/342g

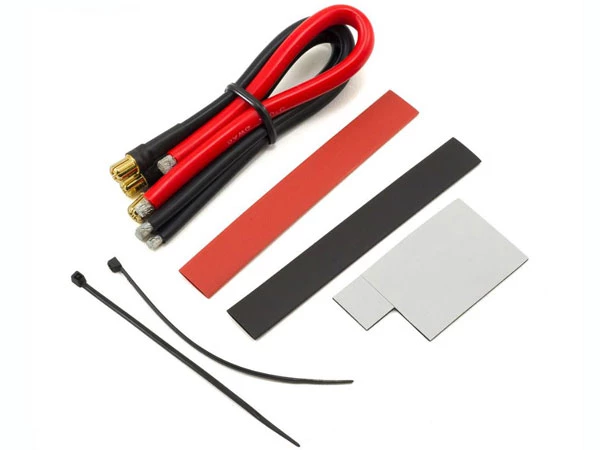

Includes:

• Ezrun MAX5 ESC
• 10 AWG, 200C Black wires for a brushless motor
• Extra set of 8 AWG 200C Red power wire
• Extra set of 10 AWG 200C Black power wire
• Double side tape
• Heat shrink tube
• Manual
• Hobbywing decal

*Please note if we are soldering your wires and connectors full lengths of wire will be used and will approx. measure 200mm. If you require a specific length please state in the order notes.

Specification

Manufacturer	Hobbywing
Part Number	HW3010400
EAN	5051294107420
Waterproofing	Waterproof
Power Rating	Over 150 Amps
ESC Mode	Forward/Reverse
Battery Compatibility	LiPo/NiMh
ESC Type	For Brushless Motors
Motor Connector Type	6.5mm Bullets
Motor Compatibility Type	Sensored / Sensorless
Max Lipo Volt Rating	29.6v / 8s
Battery Connector Type	No Connector
