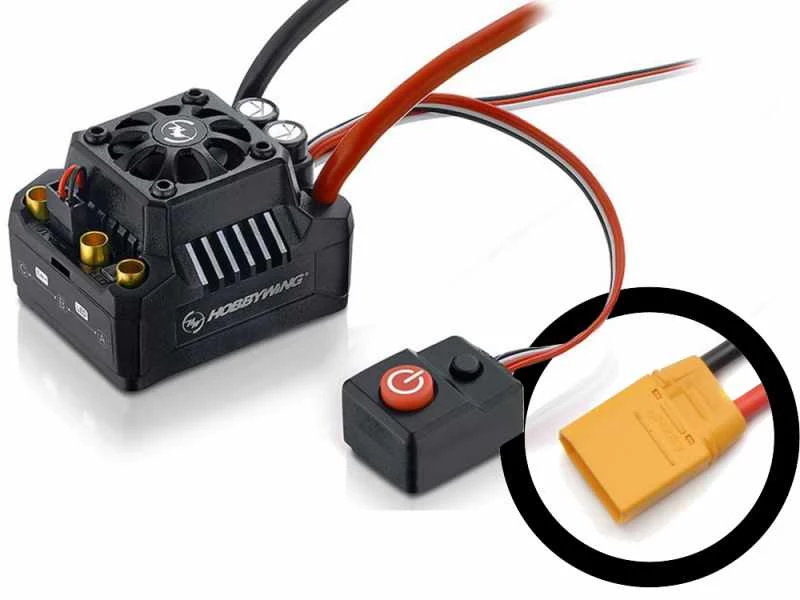

Hobbywing EZRUN Max10 SCT 120a Speed Controller

Fitted with a XT-90 Connector

High Reliability & Durability
Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applicatinos, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.

Great Flexibility & Versatility
With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrian.
The user will have the choice of adusting the ESC parameters as per his perference and ability.

Advanced and Secure Electronic Switch
The MAX10 SCT features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-prood and shock-resistant design.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

Innovative Filter Capacitor Thermal Protection
The filter capacitor thermal protection first implemented in the MAX10 SCT will effectively protect capacitors from exploding and causing irreversible damage to the ESC due to overload.

Regular Firmware Updates Free of Charge
You can upgrade the MAX10 SCT with the HobbyWing USB LINK software, a multifunction LCD program box and a laptop. HobbyWing updates its ESC firmware regularly giving you upgraded features more often when available.

Wide Applicability
This MAX10 SCT ESC is applicable to various 1/10th scale vehicles like trucks, short-course trucks, monster trucks, and etc.

Type

• Scale – 1/10th
• Brushed/Brushless – BL
• Sensored/Sensorless – SL
• Waterproof – Yes

Specifications

• Cont./Peak Current – 120A/760A
• Input – 2-4S LiPo/6-12 Cells NiMH
• BEC Output – Switch Mode:6V/7.4V,3A

Wires & Connectors

• Input Wires – Red-12AWG-200mm*1/Black-12AWG-200mm*1
• Input Connectors – XT-90
• Output Connecotors – 4.0 Bullet Connectors (Female)
• (Note: All the wire length above is the original length not the length you see from the outside.)

Fan

• Size – 25.0×25.0x10.0mm
• Voltage Range – 5-7.4V
• Powered by – Powered by BEC

ESC Programing via
SET Button on ESC – Supported
LED Program Box – Supported
LCD Program Box – Supported
WiFi Module – Supported
Program Port – FAN/Program Port

Firmware
Firmware Upgrade – Supported

Size & Weight

• Size – 49.0×39.5×34.7mm
• Weight – 105g

Applications

• Motors – SL BL Motors/SD BL Motors(only in SL mode)
• Vehicles – 1/10thSCTs/Truck/Monster Truck
• KV Rating/T Count – 2S LiPo:KV=6000;3S LiPo:KV=4000;4S LiPo:KV=3000(36XX Series of Motors

*Please note if we are soldering your wires and connectors full lengths of wire will be used and will approx. measure 200mm. If you require a specific length please state in the order notes.

Specification

Manufacturer	Hobbywing
Part Number	HW30102601
EAN	5051294111946
Battery Connector Type	XT-90
Waterproofing	Waterproof
Power Rating	Upto 120 Amps
ESC Mode	Forward/Reverse
Battery Compatibility	LiPo/NiMh
ESC Type	For Brushless Motors
Motor Connector Type	4.0mm Bullets
Max Nimh Volt Rating	14.4v / 12 cell
Motor Compatibility Type	Sensorless
Max Lipo Volt Rating	14.8v / 4s
