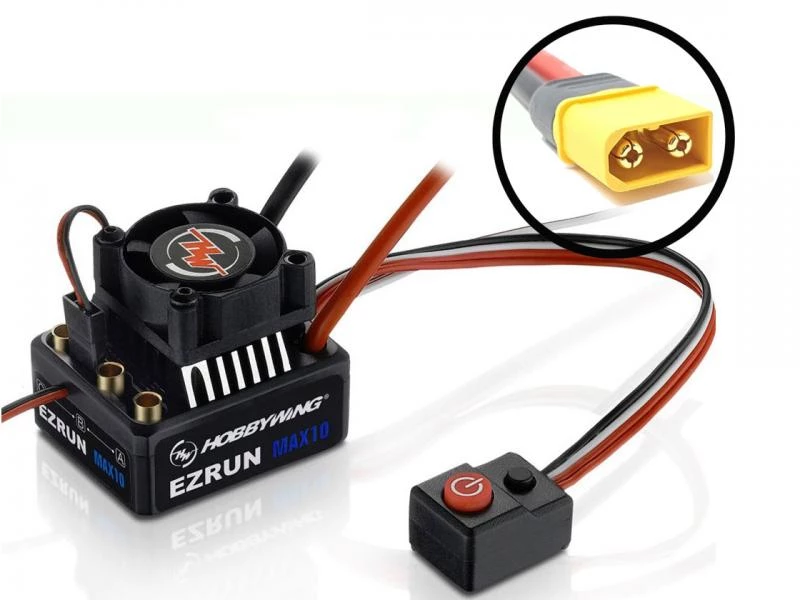

Hobbywing EZRUN Max 10 60A ESC

Fitted with a XT-60 Connector

The MAX10 uses a Motor Thermal Protection circuit (in Sensorless Mode)
When pairing the MAX10 with a Hobbywing matching motor (i.e. EzRun 3652/3660 G2 motor), the temperature sensor cable on the ESC will monitor the motor temperature and protect the motor from irreversible damage due to overheating in real time.

Capacitor Thermal Protection
The capacitor thermal protection first implemented in the MAX10 will effectively protect capacitors from diaelectric failure causing irreversible damage to the ESC due to overload.

High Reliability & Durability
Built with high-quality components and coupled with cutting-edge firmware, the MAX10 is able to deliver unmatched power and performance for even the most extreme racing applications, but it is also responsive enough to protect itself
from damage due to overloading due to physical abuse, overuse or even human error.

Super Internal BEC
The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows the use of various high voltage servos.

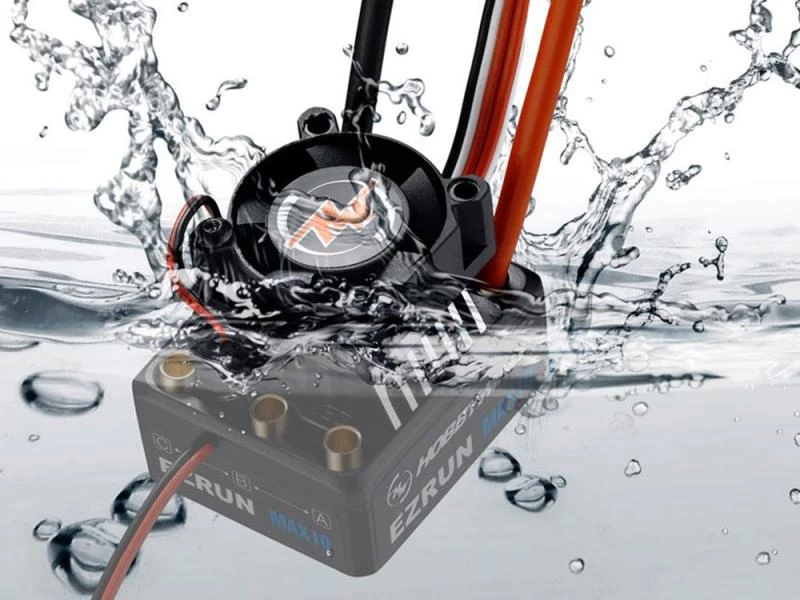

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the MAX10 to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.

Advanced and Secure Electronic Switch
The MAX10 features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.

Regular Firmware Updates Free of Charge
You can upgrade the MAX10 with the Hobbywing WiFi/USB LINK software, a WiFi module/ LED or LCD program box and a smartphone/laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.

Specifications

Type
Scale – 1/10th
Brushed/Brushless – BL
Sensored/Sensorless – SL
Waterproof – Yes

Cont./Peak Current – 60A/450A
Input Voltage – 2-3S LiPo/6-9 Cells NiMH
BEC Output – Switch Mode: 6V/7.4V,3A

Wires & Connectors

ESC Connector: XT-60
Input Wires – Red-14AWG-200mm*1/Black-14AWG-200mm*1
Output Wires – Black-14AWG-200mm*3
Output Connectors – 3.5 Bullet Connectors (Female)
(Note: All the wire length above is the original length not the length you see from the outside.)

Fan
Size – 25.0×25.0x10.0mm
Voltage Range – 5-7.4V
Powered by – BEC

ESC Programing via
SET Button on ESC – Supported
LED Program Box – Supported
LCD Program Box – Supported
WiFi Module – Supported
Program Port – PRG/Fan Port

Firmware
Firmware Upgrade – Supported

Size & Weight
Size – 39.4×32.8×23.1mm
Weight – 67.8g

Applications
Motors
SL BL Motors/SD BL Motors (only in SL mode)
Vehicles
1/10th Buggy, On-road, and Light-weight 2WD SCT, Truck and Monster Truck
KV Rating/T Count
2S LiPo: KV=6000;3S LiPo: KV=4000 (3652 Series of Motors)

Specification

Manufacturer	Hobbywing
Part Number	HW30102602
EAN	5051294119478
Waterproofing	Waterproof
Power Rating	Upto 60 Amps
Battery Compatibility	LiPo/NiMh
ESC Type	For Brushless Motors
Motor Connector Type	3.5mm Bullets
Max Nimh Volt Rating	10.8v / 9 cell
Battery Connector Type	XT-60
Motor Compatibility Type	Sensorless
Max Lipo Volt Rating	11.1v / 3s
