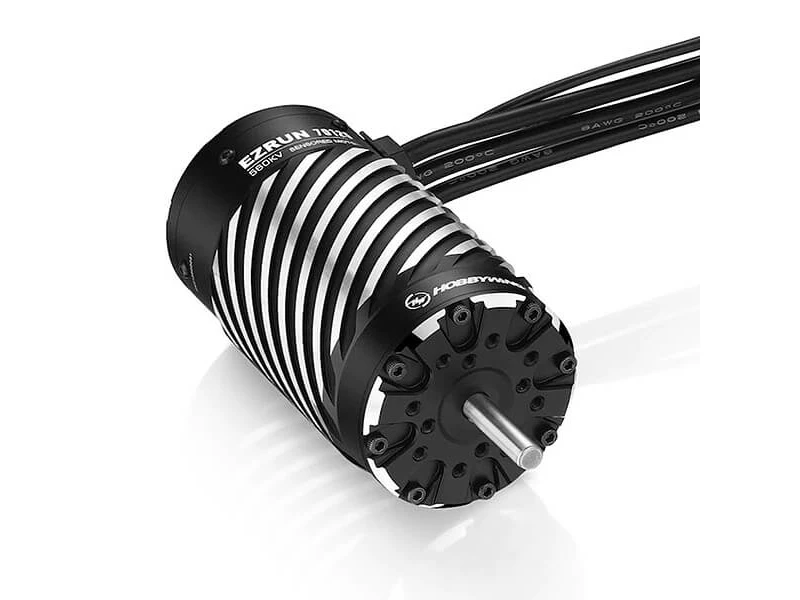

Hobbywing EZRUN 70125SD 560kV V1 Motor

A perfect combo with the EzRun MAX4 HV ESC

The motor achieves perfect compatibility when used together with the EzRun MAX4 HV ESC. It provides ultra-large torque, precise handling performance, and brings a smooth and comfortable control experience to the users.

Exquisite appeareance

The exquisite look combined with an innovative heat dissipation structure of the casing truly brings out a product Hobbywing is proud of.

Fully sensored mode，High power

The EZRUN series of motors are known to be dynamic and dominant. They are built differently to meet the needs of various demands on the market. It has a strong output power with an excellent linearity at low speed and is operating on full-sensored mode.

Applicable to All Weather & Track Conditions

The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including muddy, sandy, icy, snowy and water without damaging the power unit.

Type

• Scale 1/5th
• Brushed/Brushless: BL
• Sensored/Sensorless: SD
• Pole Count: 4

Relevant Parameters

• KV Rating: 560KV
• LiPo Cells: 8-12S
• No-load Current(A): 3.6A

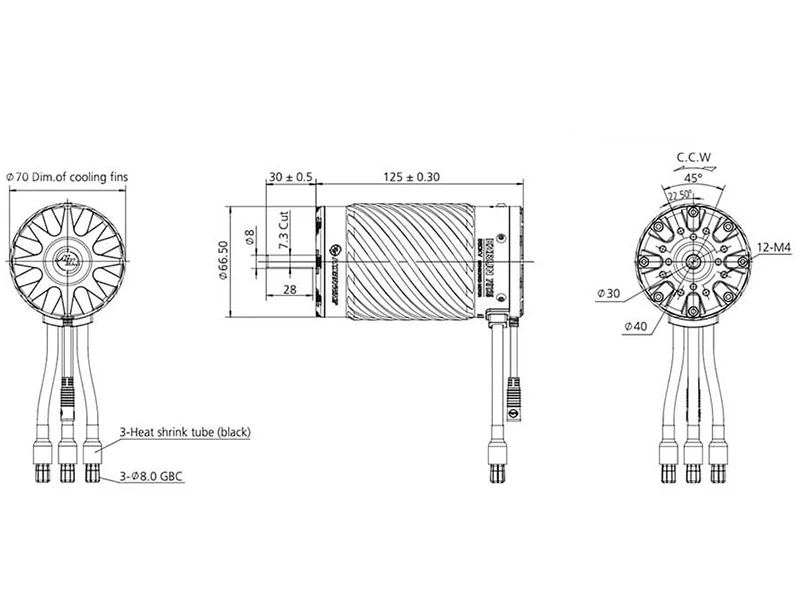

Size & Weight

• O.D.(mm): 70
• Length (mm): 125
• Shaft Diameter (mm): 8
• Weight (g): 1995g
• Front Bearing: D22*D8*T7
• Rear Bearing: D22*D8*T7

Other Parameters

• Applications
• 1/5th Heavy-duty Off-road, Truck.

Specification

Manufacturer	Hobbywing
Part Number	HW30402850
EAN	6938994405515
Motor Brush Type	Brushless
Motor Connector Type	8mm Bullets
Bore	8mm
Pole	4 Pole
Brushless Motor Type	Sensored
KV Rating (Brushless)
