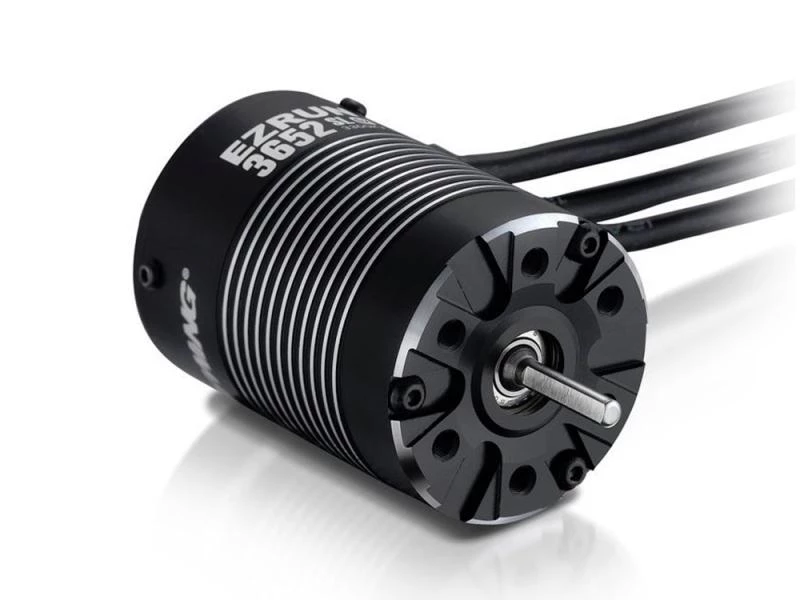

Hobbywing EZRUN 3652SL 5400kV G2 Brushless Motor

High Torque

The 4 pole design will guarantee the motor to produce very large amounts of torque, a much faster acceleration response and a very stable output of power to the drivetrain.

Low Cogging Torque
The first motor adopted the innovative 4-pole-8-magnet “staggered pole” rotor (Hobbywing-patented design) (in the RC field) has the extremely low cogging effect and low torque pulsation (it’s reduced by 85% when comparing with conventional 1/10th scale 4-pole motors)

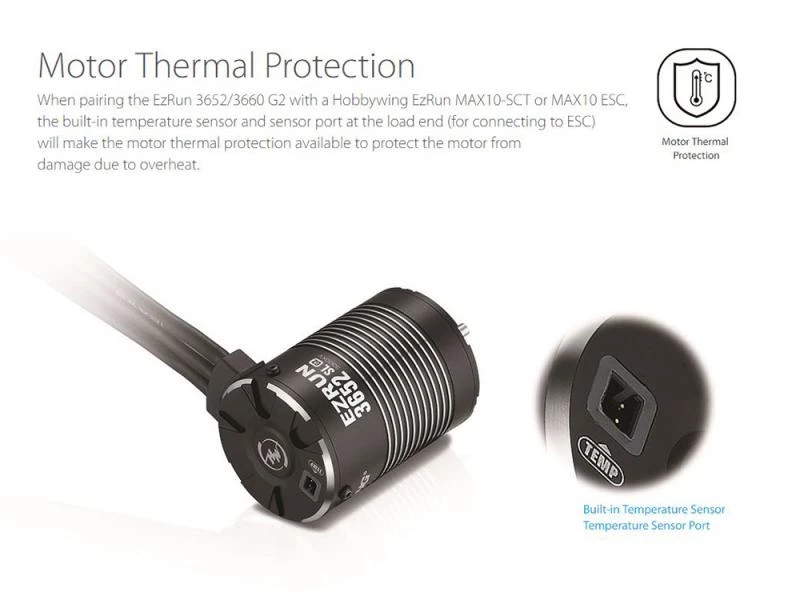

Motor Thermal Protection

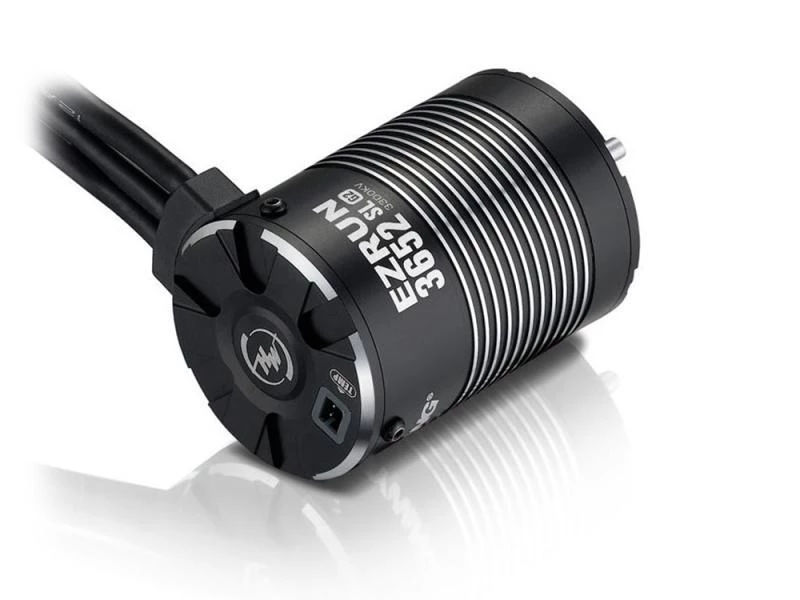

When pairing the EzRun 3652/3660 G2 with a Hobbywing EzRun MAX10-SCT or MAX10 ESC, the built-in temperature sensor and sensor port at the load end (for connecting to ESC) will make the motor thermal protection available to protect the motor from damage due to overheat.

Excellent Structure
The O-ring seal fitted between the front end bell and motor case isolates screw holes from inner parts to prevent liquid or dust from getting inside and protect motor from damage.
The special design implemented by the motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws.

High Efficiency
Hobbywing’s temperature control technology has been designed to protect the motor from being damaged by heat thus less heat more efficient the motor will run and perform. The output performance of this motor has an efficiency rate of up to 90%, a leading level in the RC world.

Quality Materials & Excellent Design
The use of double insulated windings (240? R-leveled), high-intensity adhesive (340?), Japanese bearings and silicon steel sheets guarantees users the outstanding performance and super durability. The wheel hub design of the front & rear end bells reduces the motor weight.

Compatible (with the EZRUN MAX10-SCT/MAX10 ESC)
When pairing the EzRun 3652/3660 G2 motor with a Hobbwing EzRun MAX10-SCT/ MAX10 ESC, the excellent match between ESC and motor will give you large torque plus a very smooth and linear power band.

3652SL = 36 is the diameter of the motor 52 the length in mm. SL = Sensorless.
Making the above std 540 size with std 1/10th” shaft.

HobbyWing EzRun 3652 G2 5400KV SL Motor (1/10th Buggy) Features:

• Innovative 4-pole-8-magnet “staggered pole” rotor
• Built-in temperature sensor and sensor port
• O-ring seal fitted between the front end bell and motor case
• Special design motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws
• Special technology for temperature control for less heat and more efficiency (efficiency rate of up to 90%)
• CNC machined aluminium housing, high purity copper windings and advanced rotor structure

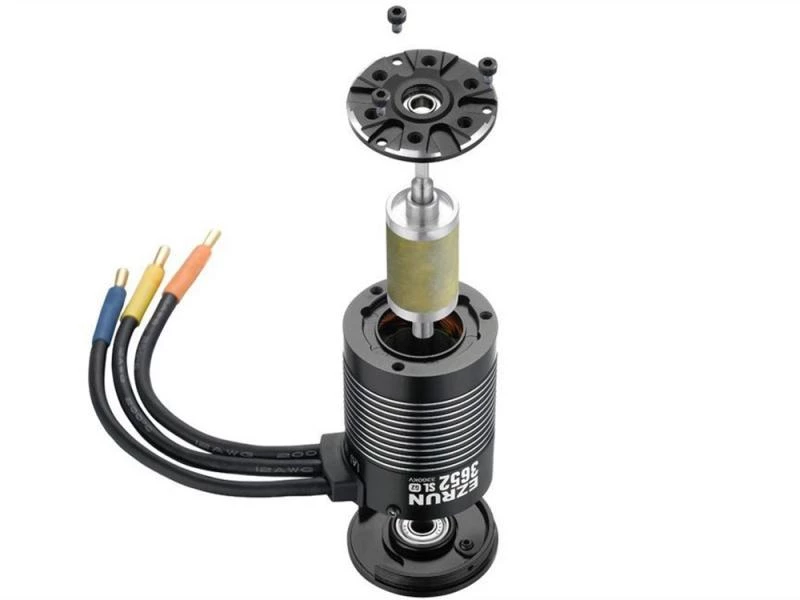

• Rebuild-able design for easy routine maintenance

Spec Check:

• Scale: 1/10th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensorless
• Pole Count: 4
• KV Rating: 5400
• LiPo Cells: 2S
• No-load Current(A): 7.2
• Timing: 0 Degrees(Fixed)
• O.D.(mm): 36.00
• Length (mm): 52.00
• Shaft Diameter (mm): 3.175
• Weight (g): 217

Specification

Manufacturer	Hobbywing
Part Number	HW30402602
EAN	5051294120085
Motor Brush Type	Brushless
Motor Size	540
KV Rating (Brushless)	5001 – 6000kv
Bore	3.2mm
Pole	4 Pole
Brushless Motor Type	Sensorless
