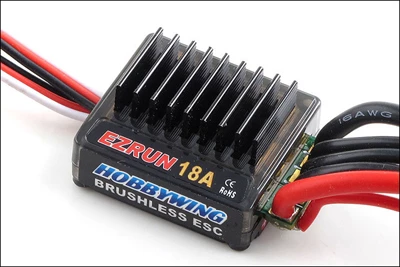

Hobbywing EZRUN 18A SLBL ESC 1/16th

With the strong torque and excellent output, the EZRUN 18A can definitely cater for all the power hungry requirements that professional drivers need. The highly adjustable parameters of the ESC will allow drivers to enjoy smooth throttle response when the throttle/brake linearity is utmost required.

Hobbywing patented heat-conductive copper bar cover on the power board of the EZRUN 18A, which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum heat sink housing, combined with high-performance cooling fan can keep your ESC as cool as possible.

HobbyWing EzRun 18A Features:

• High Reliability & Durability
• Efficient Cooling System
• Great Flexibility & Versatility
• Multiple Programming Methods
• Single-button Programming & Factory Reset
• Regular Firmware Updates-Free of Charges

Spec Check:

• Scale: 1/16th, 1/18th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensorless
• Motor Limit:
  4-6 cell NiMH/NiCd or 2S LiPo: On-Road≥12T,  Off-Road≥18T
  6-9 cell NiMH/NiCd or 3S LiPo: On-Road≥18T,  Off-Road≥24T
• Waterproof: No
• Cont./Peak Current: 18A/50A
• Input: 2-3S LiPo/4-9 Cells NiMH
• BEC Output: Linear Mode:6V/1A
• Size: 31.5×27.5×15.0mm
• Weight: 19g

Specification

Manufacturer	Hobbywing
Part Number	HW81010020
EAN	5051294099510
Battery Connector Type	Mini Tamiya
Waterproofing	No
Battery Compatibility	LiPo/NiMh
ESC Type	For Brushless Motors
Max Nimh Volt Rating	10.8v / 9 cell
Motor Compatibility Type	Sensorless
Max Lipo Volt Rating	11.1v / 3s
